Industrial by Design DisplayCORE®

15.6" 1080P Sunlight Readable HDMI Industrial Displays

Industrial by DESIGN

Industrial Sunlight 15.6" HDMI Display G156HAN02.1

State of the art for technology and design benefits for your next project!

Tianma NL19210BC HDMI Display

- 1920x1080 1080P HD TFT with EXTRODINARY 89 degree viewing angle AHVA TFT panel.
- VERY WIDE Operating Temperature range of -20 to 70C - HDMI Industry standard Interface with through hole soldered connector.
- USB Industry Standard HID touch controller with through hole soldered connector - PWM Backlight control
- Projected Capacitive GLASS Touch Screen extended for flush mount design. - Die cut 360 degree 3M VHB RP25 bezel gasket for NEMA capable sealing.
- ABS Carrier with 4-40 threaded mounting capability.

- 7 Year Product Availability by design!

15.6"

1920 x 1080 AHVA 1080P HDMI 1000 cd/m2 PCT USB Touch

An HDMI Extended Temperature (-30 to 85C) FULL HD (FD) USB Ultra Wide Viewing Angle, EXTENDED Backlight Life Glass PCT Screen embedded display. The current panel is an AUO G156HAN04.0

With our "INDUSTRIAL BY DESIGN™" architecture for 7 year extended form factor support!

AUO G156HAN04.0 HDMI Touch Display

82-088-00 HDMI PCT TOUCH Display Datasheet

82-089-00 HDMI Display Datasheet

Technical Specifications

**Specifications**
Outline Size(mm)	385.00x237.00x34.00*
Active Area (mm)	344.16 x193.59
Resolution	1920x1080
Brightness (nits)	1000 (920*)
LED Lifetime (HRS)	50,000
PWM Brightness Control	3V 100KHz Max
Display Mode	AHVA Normally Black
Viewing Angle (degrees)	89,89,89,89
TFT Interface	HDMI
Touch	PCT USB HID
Operating (C)	-30 to 85
Operating (V)	5.0

* With PCT

1920 x 1080 AHVA 1080P HDMI 500 cd/m2 PCT USB Touch

An HDMI Extended Temperature (-20 to 70C) FULL HD (FD) USB Ultra Wide Viewing Angle, EXTENDED Backlight Life Glass PCT Screen embedded display. The current panel is an AUO G156HAN02.302

With our "INDUSTRIAL BY DESIGN™" architecture for 7 year extended form factor support!

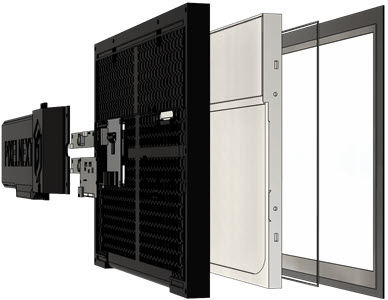

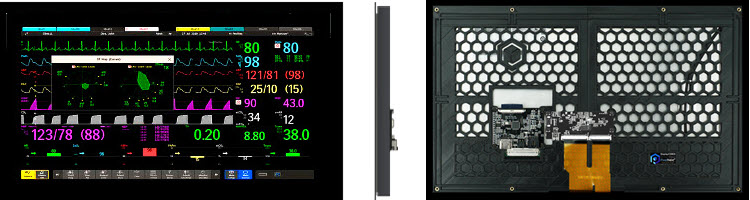

AUO G156HAN02.1 HDMI Touch Display

82-028-00 HDMI PCT TOUCH Display Datasheet

82-029-00 HDMI Display Datasheet

Technical Specifications

**Specifications**
Outline Size(mm)	385.00x237.00x18.00*
Active Area (mm)	344.16 x193.59
Resolution	1920x1080
Brightness (nits)	500 (460*)
LED Lifetime (HRS)	50,000
PWM Brightness Control	3V 100KHz Max
Display Mode	AHVA Normally Black
Viewing Angle (degrees)	89,89,89,89
TFT Interface	HDMI
Touch	PCT USB HID
Operating (C)	-20 to 70
Operating (V)	5.0

* With PCT
