Industrial by Design DisplayCORE®

12.1" Sunlight Readable Industrial Displays

Industrial by DESIGN

auo_g121ean01_3_hdmi_displays

State of the art for technology and design benefits for your next project!

- 1280x800 WXGA (16:10) TFT with EXTRODINARY 88 degree viewing angle AHVA TFT.
- VERY WIDE Operating Temperature range of -20 to 70C, -30 to 85C
- HDMI Industry standard Interface with through hole soldered connector.
- USB Industry Standard HID touch controller with through hole soldered connector
- PWM Backlight control

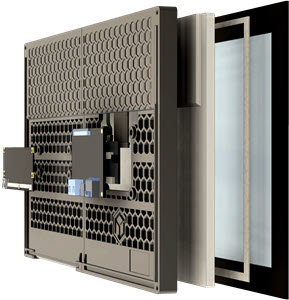

- Projected Capacitive GLASS Touch Screen extended for flush mount design.
- Die cut 360 degree 3M VHB RP25 bezel gasket for NEMA capable sealing.
- ABS Carrier with 4-40 threaded mounting capability.

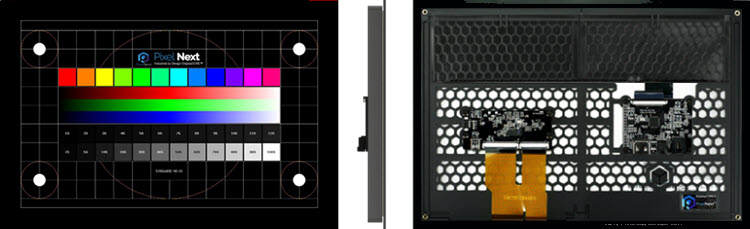

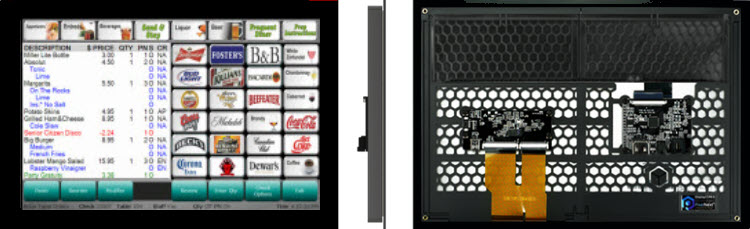

AUO G121EAN01.3 HDMI Touch Display

12.1"

12.1" HDMI TFT Display

1280 x 800 AHVA HD SUNLIGHT READABLE 1500 cd/m2(1395*) ULTRA Wide Operating Temp -30 to 85C, 70K hour backlight and optional PCT USB Touch

An HDMI Extended Temperature (-30 to 85C) 1280x800 (HD capable) USB Ultra Wide Viewing Angle, EXTENDED Backlight Life PCT Screen embedded display. The current panel is an AUO G121EAN01.3

82-035-00 HDMI PCT Display

82-036-00 HDMI Display

Technical Specifications

**Specifications**
Outline Size(mm)	301.00x203.00x18.00
Active Area (mm)	261.12x163.20
Resolution	1280x800
Brightness (nits)	1500 (1395*)
LED Lifetime (HRS)	70,000
Display Mode	AHVA Normally Black
Viewing Angle (degrees)	89,89,89,89
TFT Interface	HDM
Touch	PCT USB HID
Operating (C)	-30 to 80*, -30 to 85
Operating (V)	5.0

* Values for PCT version

1280 x 800 AHVA HD 400 cd/m2(370*) ULTRA Wide Operating Temp -30 to 85C, 50K hour backlight and optional PCT USB Touch

An HDMI WIDE operating temperature (-30 TO 85C) HID USB HID TOUCH Wide Viewing Angle, EXTENDED Backlight Life Glass PCT Screen embedded display. The current panel is an AUO G121EAN01.0

82-066-00 HDMI PCT Display

82-067-00 HDMI Display

Technical Specifications

**Specifications**
Outline Size(mm)	301.00x203.00x18.00
Active Area (mm)	261.12x163.20
Resolution	1280x800
Brightness (nits)	400 (370*)
LED Lifetime (HRS)	50,000
Display Mode	AHVA Normally Black
Viewing Angle (degrees)	89,89,89,89
TFT Interface	HDMI or DisplayPORT
Touch	PCT USB HID
Operating (C)	-30 to 85
Operating (V)	5.0

* Values for PCT version
