10.1" Industrial Displays

Industrial by DESIGN

10-1 HDMI TFT Display

State of the art for technology and design benefits for your next project!

- 1920x1200 HD and 1280x800 WXGA (16:10) TFTs with EXCELLENT 85 degree viewing angle AHVA and MVA TFT panel.
- WIDE Operating Temperature range of -10 to 60C and -20 to 60C
- HDMI Industry standard Interface with through hole soldered connector.
- USB Industry Standard HID touch controller with through hole soldered connector.
- Projected Capacitive GLASS Touch Screen extended for flush mount design.
- Die cut 360 degree 3M VHB RP25 bezel gasket for NEMA capable sealing.
- ABS Carrier with 4-40 threaded mounting capability.

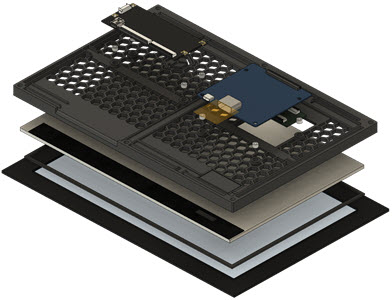

AUO G101EVN01.1 HDMI Touch Display Assembly
CATALOG 15.6" 12.3" 12.1" 10.1" 8" 3U 7" 5" 2U 3.9" 1U

10.1" HD Industrial TFT Displays


1280 x 800 MVA WXGA Sunlight 1000 cd/m2 (920*) optional PCT USB Touch

A sunlight readable WXGA USB Viewing Angle, EXTENDED Backlight Life (50K) PCT embedded display.

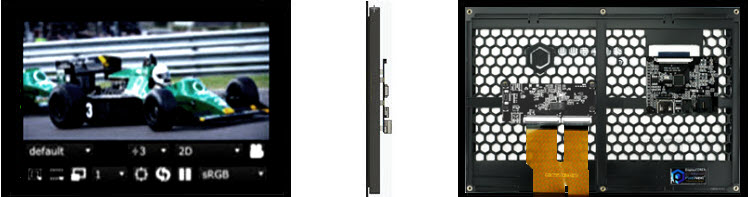

The current panel is an AUO G101EVN03.1

81-026-00 G101EVN03.1 HDMI Touch Display Broadcast



82-040-00 HDMI PCT Touch Display Datasheet AUO G101EVN03.1 HDMI Touch Display

82-043-00 HDMI Display Datasheet  AUO G101EVN03.1 HDMI Display Datasheet

1280 x 800 MVA WXGA 400 cd/m2 (340*) optional PCT USB Touch

A Wide Viewing Angle, EXTENDED Backlight Life (30K) PCT embedded display.
The current panel is an AUO G101EAN02.1

G101EVN02.1 HDMI Touch Display Broadcast



82-072-00 HDMI PCT Touch Display Datasheet AUO G101EVN02.1 HDMI Touch Display

82-073-00 HDMI Display Datasheet  AUO G101EVN02.1 HDMI Display Datasheet
