Catalog - Industrial Grade TFT Displays

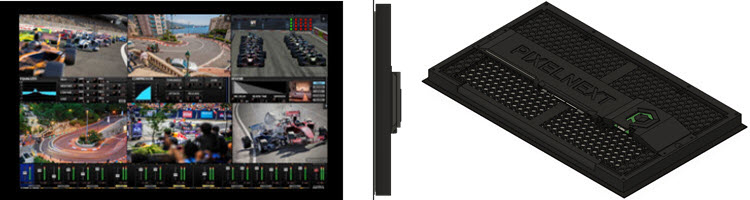

15.6" 1920x1080 HD 1080P 1000 cd/m2 PCT USB Touch -30C to 85C*

GENERAL DESCRIPTION

OVERVIEW 15.6” TFT module,, sunlight brightness option 1000* cd/m2. HDMI Interface. OPTIONAL USB PCT touch interface. 1920x1080 HD (16:9) AHVA display technology.

“INDUSTRIAL BY DESIGN” FEATURES
- Wide Operating Temperature Range -30 to 85C* (-20 to 70C)** with PCT
- Extended Backlight Lifetime 50K Hours
- VERY Wide Viewing Angle of 89 degrees (symmetric all axis).
- Contrast Ratio 1000 typ (750 at 1500 NIT)
- HDMI and USB HID PCT Touch

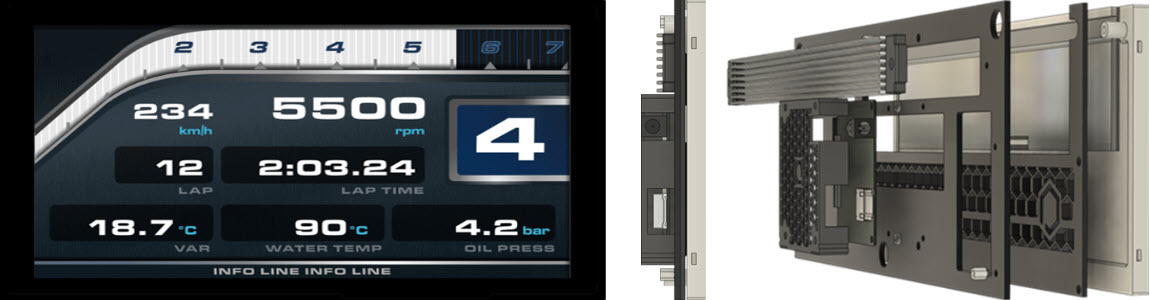

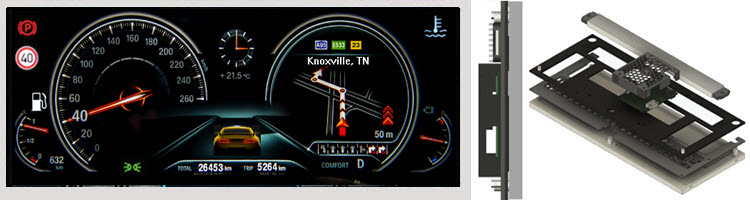

12.3" 1920x720 HD IPS SUNLIGHT READABLE 850 cd/m2(800*) ULTRA Wide Operating Temp -30 to 85C and optional PCT USB Touch

12.3” TFT module, brightness 850 (800) cd/m2*. HDMI. OPTIONAL USB PCT touch interface. 1920x720 720P IPS display technology.

“INDUSTRIAL BY DESIGN” FEATURES
- EXTREMELY WIDE Operating Temperature Range -30 to 85C
- VERY Wide Viewing Angle of 85 degrees (symmetric all axis).
- Contrast Ratio 1100 typ with Anti-Reflective Treatment
- HDMI and USB HID PCT Touch

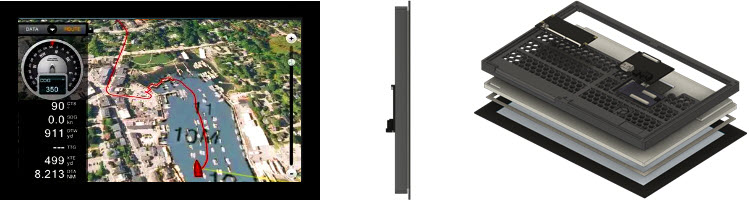

12.1" WXGA 1200x800 AHVA SUNLIGHT READABLE 1500 cd/m2(1410*) or 500 NIT  ULTRA Wide Operating Temp -30 to 85C and optional PCT USB Touch

GENERAL DESCRIPTION

12.1” TFT module, brightness 1380, 460 cd/m2*. HDM Interface. OPTIONAL USB PCT touch interface. 1280 x 800 (16:10) AHVA display technology.

“INDUSTRIAL BY DESIGN” FEATURES
- EXTREMELY WIDE Operating Temperature Range -30 to 85C
- LONG Backlight Lifetime 50K Hours
- VERY Wide Viewing Angle of 89 degrees (symmetric all axis).
- Contrast Ratio 1000 typ with Anti-Reflective Treatment
- HDMI Interface
- USB HID PCT Touch - Meets Windows 8 human touch requirements.

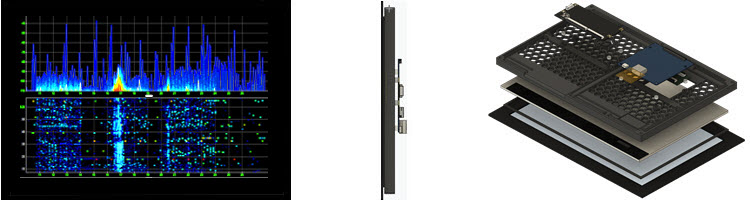

10.1" WXGA 1280x800, 400 or 1000 cd/m2 PCT USB Touch -20C to 70C

GENERAL DESCRIPTION

10.1” TFT module,, brightness 800 cd/m2*. HDMI Interface. OPTIONAL USB PCT touc interface. (16:10) 1280x800 WXGA MVA display technology.

“INDUSTRIAL BY DESIGN” FEATURES
- Wide Operating Temperature Range -10 to 60C up to -20 to 60
- VERY Wide Viewing Angle of 85 to 89 degrees (symmetric all axis).
- Contrast Ratio 1000 typ with Anti-Reflective Treatment
- HDMI Interface with STRAIN RELIEF
- USB HID PCT Touch - Meets Windows 8 human touch requirements.

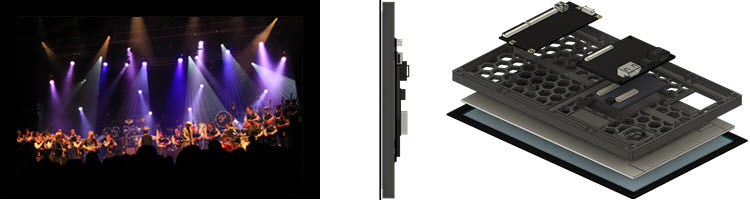

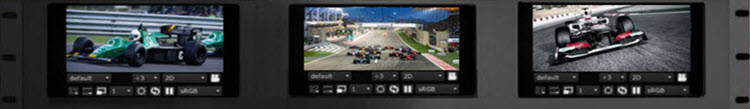

8" 1280x720 720P HD Landscape 800 cd/m2 PCT USB Touch

GENERAL DESCRIPTION

OVERVIEW 8.0” TFT module, brightness 800 cd/m2*. HDMI Interface. OPTIONAL USB PCT touch interface. 720P 1280x720 HD AHVA display technology.

“INDUSTRIAL BY DESIGN” FEATURES
- Wide Operating Temperature Range -30 to 85C
- VERY Wide Viewing Angle of 89 degrees (symmetric all axis).
- Contrast Ratio 1300 typ
- HDMI Interface
- USB HID PCT Touch - Meets Windows 8 human touch requirements.

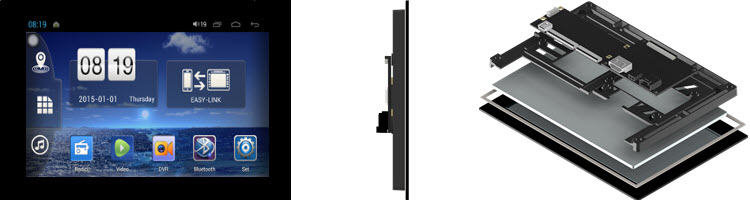

7" 1280x800 WXGA SFT 400 cd/m2 PCT USB Touch -20C to 70C

GENERAL DESCRIPTION

OVERVIEW 7” TFT module, brightness 400 cd/m2*. HDMI Interface. OPTIONAL USB PCT touch interface. 1280x800 (16:10) SFT display technology.

“INDUSTRIAL BY DESIGN™” FEATURES
- Wide Operating Temperature Range -20 to 70C
- EXTRODINARY Viewing Angle: WXGA 88 degree all axis.
- Contrast Ratio 800 typ with Anti-Reflective Treatment
- HDMI Interface
- USB HID PCT Touch - Meets Windows 8 human touch requirements.

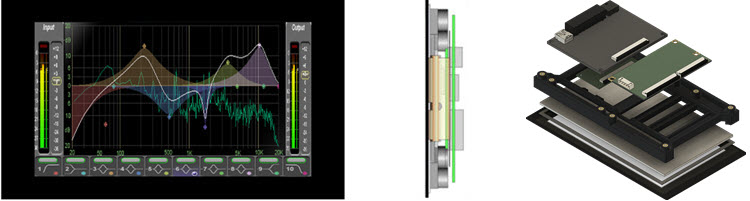

5" 1280x720 HD 720P AHVA 600 (*560)cd/m2 PCT USB Touch -10C to 60C

OVERVIEW 5” TFT module,, brightness 610 cd/m2*. Industrial MIPI Interface with USB PCT touch interface. 1280 x720 HD (16:9) AHVA display technology.

“INDUSTRIAL BY DESIGN” FEATURES
- WIDE Operating Temperature Range -10 to 60C
- WIDE Viewing Angle of 80 degrees (symmetric all axis).
- VERY HIGH Contrast Ratio 1000 typ with Anti-Reflective Treatment
- DisplayCORE Industrial MIPI Interface
- USB HID PCT Touch - Meets Windows 8 human touch requirements.

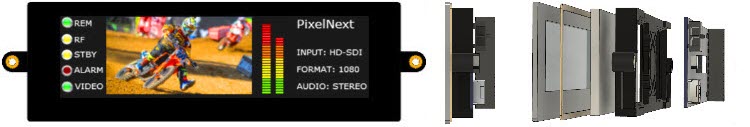

3.9" Wide 480x128 400 (*368) cd/m2 PCT USB Touch -20C to 70C

INDUSTRIAL TEMP -20 to 70C, 400 cd/m2 bright, 25K hour blacklight and an optional PCT USB Touch. Our WQVGA 1U is uniquely designed to offer flexible color HMI options to instrument grade users who demand a 7 year "Industrial by Design" availability.

And we are also introducing our PixelPanel™ custom design option for extending the HMI surface area of this display for a row of soft touch functions unparalled in this demanding tight 1U space.

And of course you can use our HDMI modules for evaluation and production or after evaluation switch to our RGB version if your production volume and cost targets demand it

OVERVIEW 3.9" TFT module, brightness 400 cd/m2*.

Industrial HDMI Interface with USB PCT touch interface.

“INDUSTRIAL BY DESIGN” FEATURES
- WIDE Operating Temperature Range -20 to 70C
- Optical Film enhanced Viewing Angle.
- DisplayCORE Industrial HDMI Interface
- USB HID PCT Touch - Meets Windows 8 human touch requirements.
